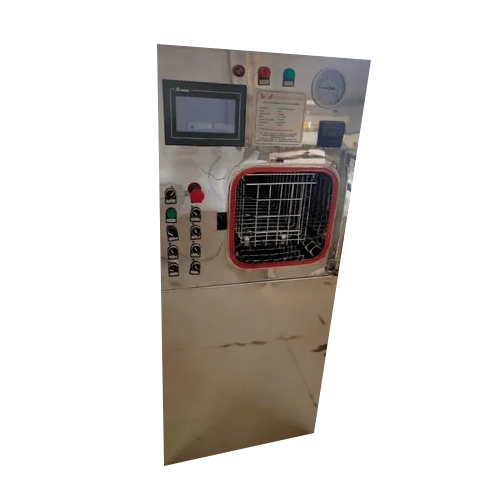

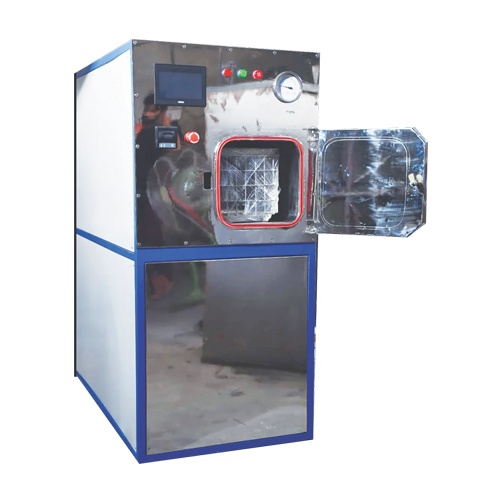

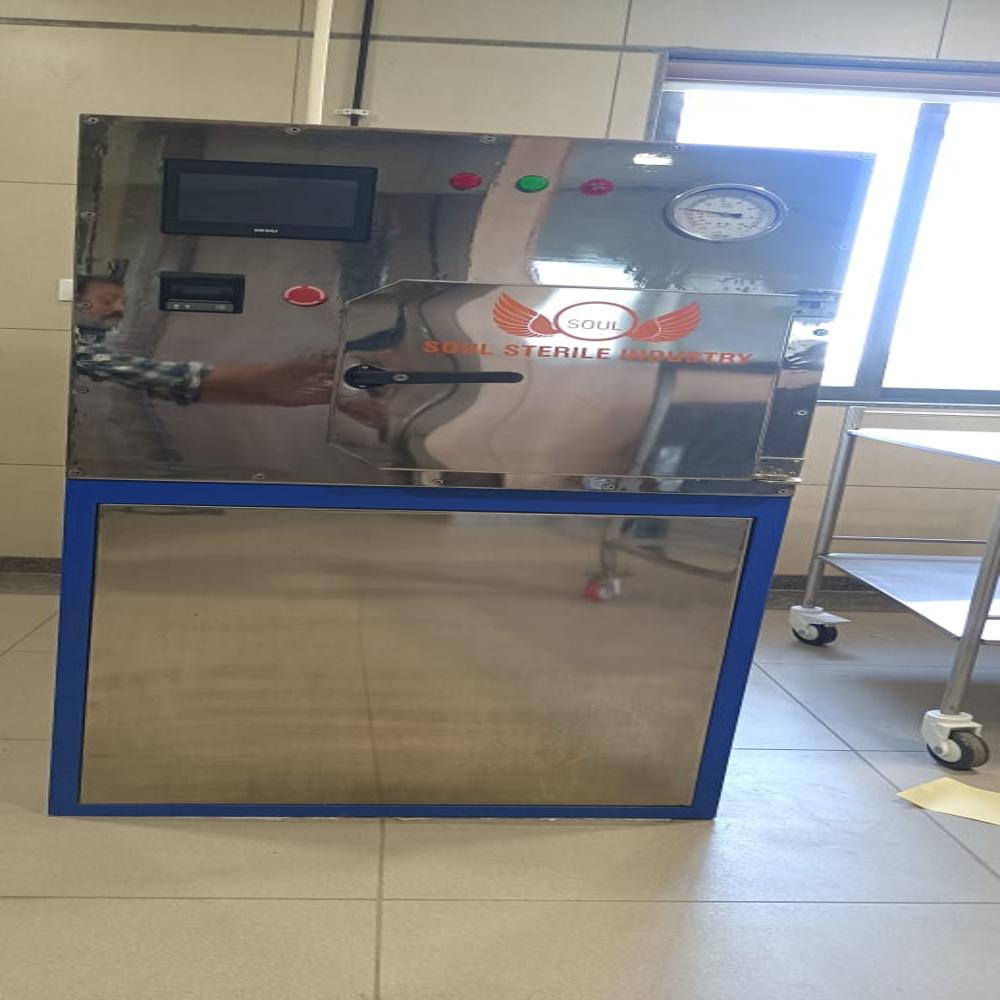

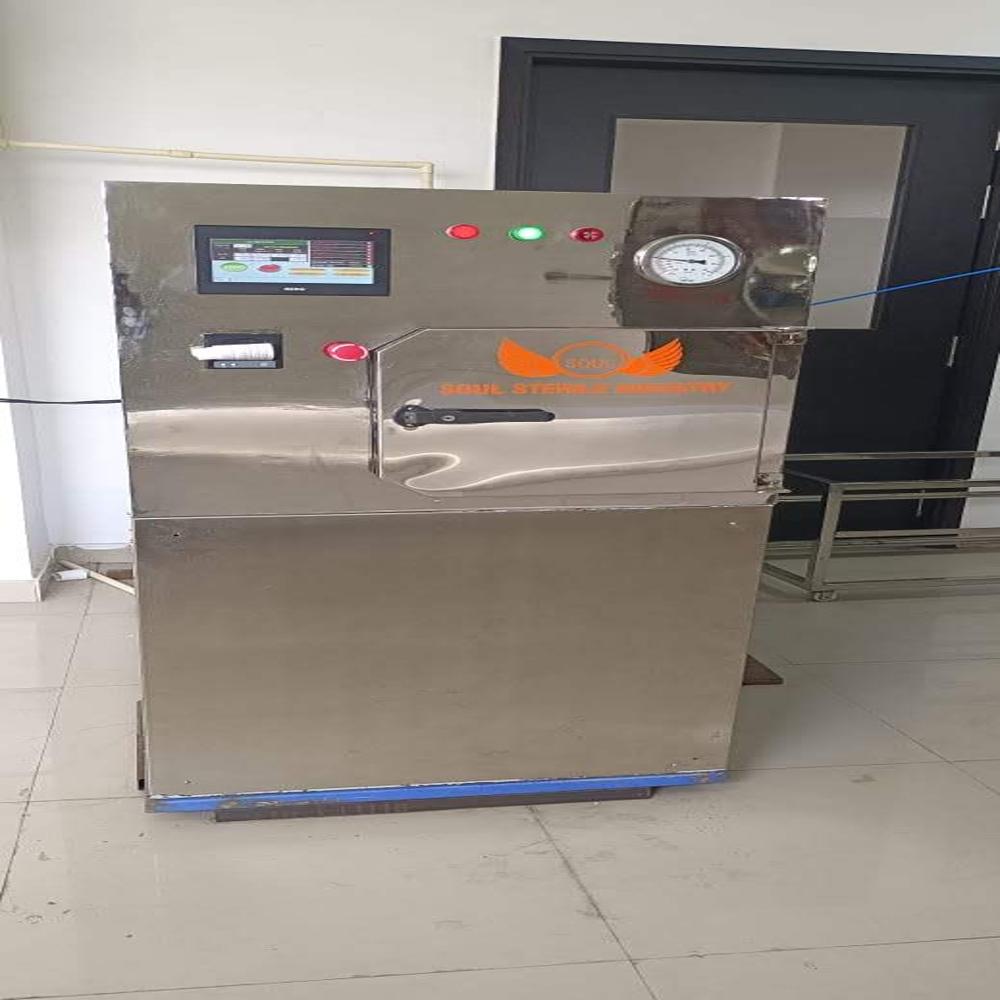

Table Top ETO Sterilizer

Table Top ETO Sterilizer Specification

Color
Silver

Dimension (L*W*H)
5 Foot (ft)

Weight
200 Kilograms (kg)

Application
Hospital

Classification
hospital use

Voltage
240 Volt (v)

Power
240 Volt (v)

Operate Method
Automatic

Capacity
210 Ltr

Material
Stainless Steel

Usage
sterilizing

Product Type
sterilizer

Type
Gas Sterilization Equipments

Chamber Size
1x1x5

Chamber Thickness
6 Millimeter (mm)

Outer Size
3x5x6

Compressed Air
2.7

Door Type
horizontal

Working Pressure
2.7 kgf/cm2

Design Temperature
134 Celsius (oC)

Heat Uniform
y

Insulation
SS

Net Weight
250 Kilograms (kg)

Recording Parameters
1

Outer Trolley
SS

Inner Trolley
SS

Spraying Piping
SS

Sterilizing Temperature
121 Celsius (oC)

Working Temperature
121 Celsius (oC)

Sterilization Time
3 Hours

Temperature Scope
121 Celsius (oC)

Piping System
SS

Valves
y tpe

Power Consumption
240 Volt (V)

Table Top ETO Sterilizer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
30 Units Per Month

Delivery Time
45 Days

Sample Available
No

Packaging Details
Standard Packaging, Wooden Box Packing

Main Export Market(s)
Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe

Main Domestic Market
All India

Certifications
ISO, IEC, GMP

About Table Top ETO Sterilizer

Fully Automatic Ethylene Oxide Sterilizer

Our advanced Ethylene Oxide Sterilizer is designed for precise and efficient sterilization processes. Equipped with cutting-edge technology and automation, this system ensures reliable and consistent results.

Key Features:

1. Pre-Programmed Cycles: Customizable cycles for specific sterilization needs.

2. Control: Advanced control systems for precise management of the sterilization process.

3. Temperature Control: Accurate temperature management for optimal sterilization conditions.

4. Alarm System: Alerts for any deviations or issues during the process.

5. Print Functionality: Generates detailed reports for record-keeping and quality control.

6. HMI (Human-Machine Interface): User-friendly interface for easy operation and monitoring.

7. Security: Enhanced security features to protect settings and data.

Advantages of PLC Automation:

Our Programmable Logic Controller (PLC) enables automation of electro-mechanical processes, providing:

- Precise Control: Over machinery and processes for consistent results.

- Reliability: Ensures smooth operation and minimizes human error.

Technical Specifications:

- Chamber Operating Pressure: 1.5 Kg/cm

- Chamber Testing Pressure: 2 Kg/cm (1.5 times the working pressure)

- Inner Seal (Chamber): SS 304L

- Gasket: Silicon Gasket (10/12 mm solid section)

- Outer Cover: Factory-finished (Poly-coated) MS

- Heating System: Uniform heating throughout the load with heaters on all sides of the chamber.

- Sensors:

- Temperature Sensor: For accurate measuring and controlling of temperature.

- RH% Sensor: For measuring and controlling humidity.

- Pressure Transmitter: For measuring and controlling pressure-vacuum.

- Valves: Pneumatic valves operated by compressed air supply through solenoid valves.

- Humidification System: Special humidifier for load humidification and gas heating.

- Vacuum System: Noise-less vacuum pump for vacuum and aeration.

- Reports: Generated in three formats - Graph Report, Single Page Summary Report, and Detailed Report.

Construction:

- Fabricated with SS 304: Ensures durability and resistance to corrosion.

- Door Closing: Manual operation for secure sealing.

- All Fittings and Valves: SS 304 and Teflo construction for reliability and longevity.

Components:

- PLC: Renu, Omron for precise control and automation.

- HMI: Renu, Omron for user-friendly operation.

This sterilizer is designed to meet the highest standards of performance, safety, and reliability, making it suitable for various applications in the medical, pharmaceutical, and industrial sectors.
