Ss Autoclave Machine

Ss Autoclave Machine Specification

Voltage
220-240 Volt (v)

Application
Hospital

Product Type
sterilizer

Color
Silver

Dimension (L*W*H)
4 Foot (ft)

Classification
horizontal

Operate Method
Automatic

Material
Stainless Steel

Capacity
1000 Ltr

Power
240 Volt (v)

Usage
sterilizing equipments

Weight
500 Kilograms (kg)

Type
Boiling Sterilization Apparatus

Chamber Size
2'X2'X4

Chamber Thickness
6 Millimeter (mm)

Outer Size
5x6x6

Compressed Air
2.7

Door Type
horizontal

Working Pressure
2.7 kgf/cm2

Design Temperature
150 Celsius (oC)

Heat Uniform
y

Insulation
ss

Net Weight
500 Kilograms (kg)

Recording Parameters
121-134

Spraying Mode
horizontal

Outer Trolley
ss

Inner Trolley
ss

Spraying Piping
ss

Steam
2.7

Sterilizing Temperature
134 Celsius (oC)

Working Temperature
134 Celsius (oC)

Sterilization Time
2 Hours

Temperature Scope
134 Celsius (oC)

Piping System
ss

Valves
control valve ss

Power Consumption
120 Kilowatt (kW)

Ss Autoclave Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
30 Units Per Month

Delivery Time
45 Days

Sample Available
No

Packaging Details
Standard packaging, wooden box packing

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, North America, Africa

Main Domestic Market
All India

Certifications
ISO, ICE, Udyam, GMP

About Ss Autoclave Machine

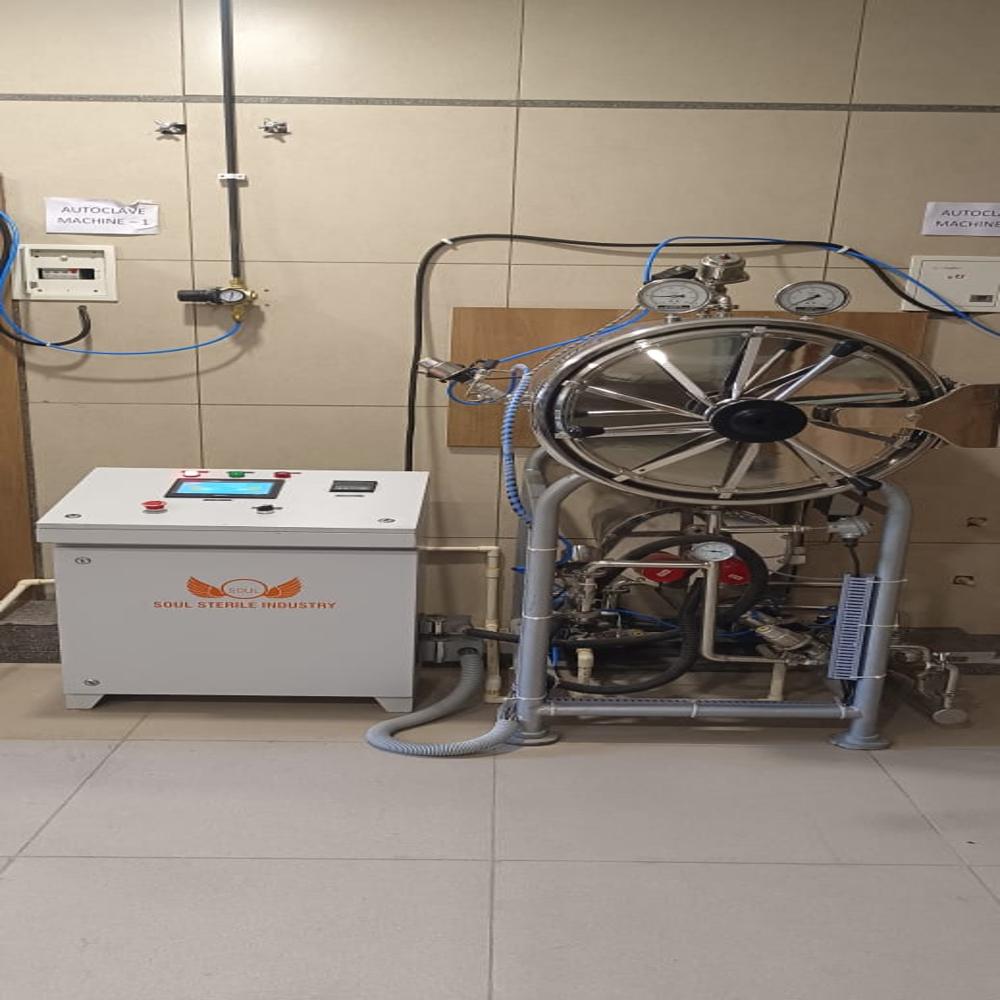

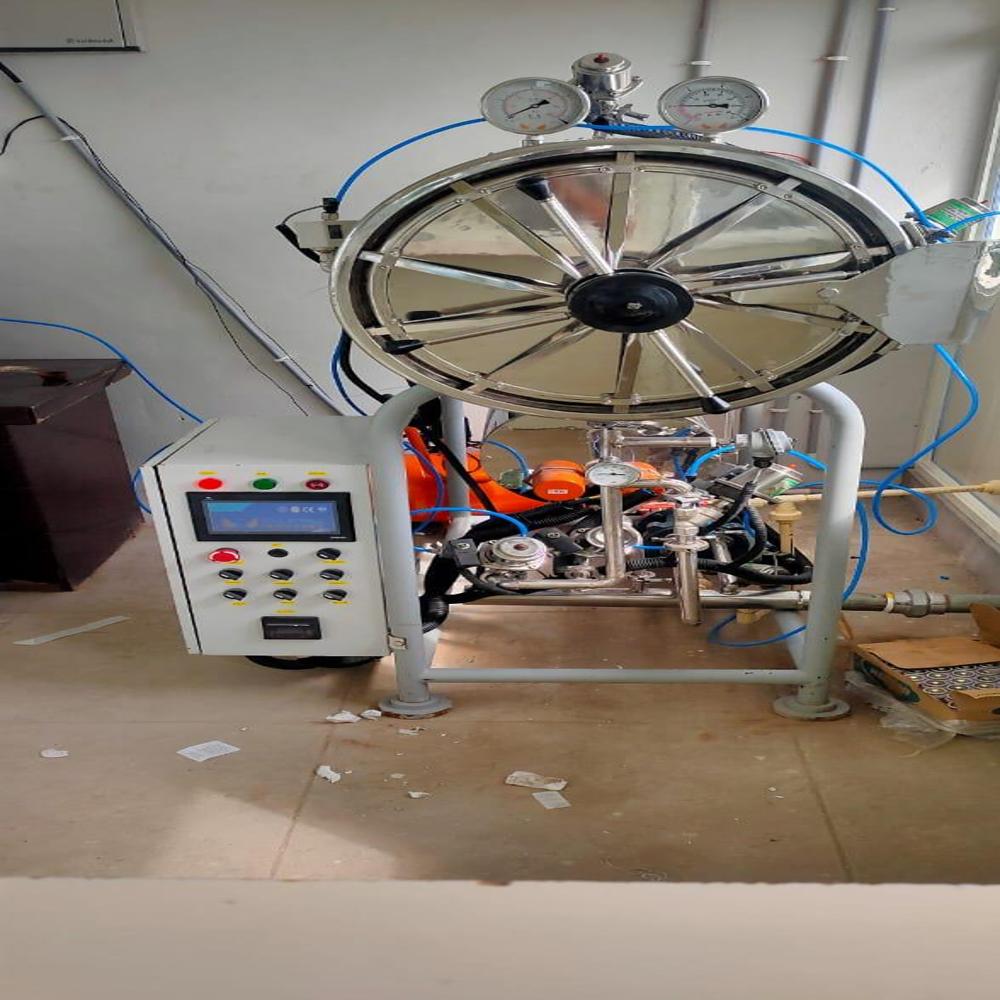

Horizontal HPHV Fully Automatic Rectangular Steam Sterilizer

Experience the pinnacle of sterilization technology with our advanced, fully automatic autoclave. Designed for efficiency and reliability, this steam sterilizer ensures precise control over the sterilization process, guaranteeing the highest standards of cleanliness and safety.

Key Benefits:

- Microprocessor-Controlled: All processes are controlled by a sophisticated microprocessor, ensuring accurate and consistent sterilization results.

- Vacuum Pump: Equipped with a water ring vacuum pump for efficient pre-vacuum and post-vacuum operations.

- PLC Automation: Our Programmable Logic Controller (PLC) offers pre-programmed cycles, precise temperature control, alarm systems, and detailed reporting capabilities.

- Advanced Features: Includes HMI (Human-Machine Interface) for user-friendly operation and enhanced security measures.

Technical Specifications:

- Operating Temperature: 121C/134C

- Chamber Working Pressure: 2 kg/cm

- Jacket Working Pressure: 2.2 kg/cm

- Hydro Test Pressure: 7 kg/cm

- Design Temperature: 134C

- Vacuum Capability: Ensures thorough sterilization and drying.

Why Choose Our Autoclave?

Our fully automatic steam sterilizer is designed to meet the demanding needs of medical, laboratory, and industrial applications. With its robust construction, advanced automation, and precise control, it provides reliable and efficient sterilization, ensuring the safety and integrity of your equipment and materials.
