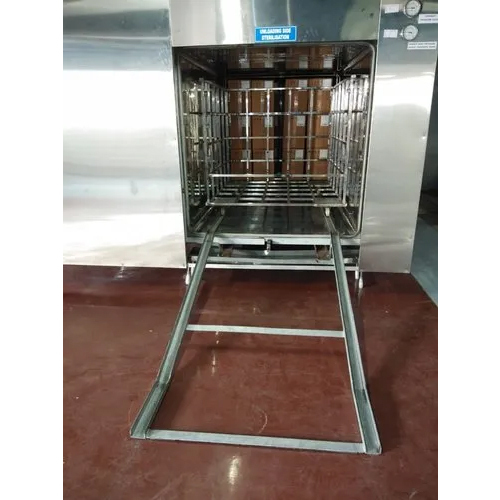

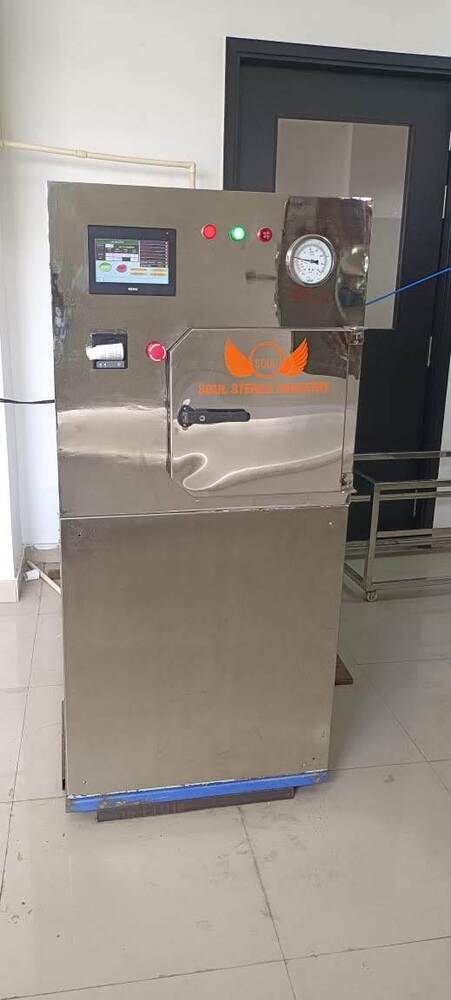

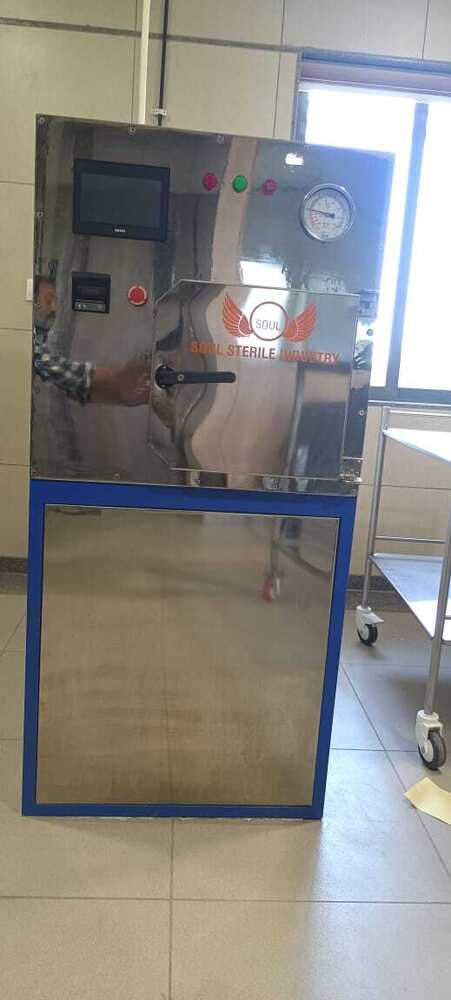

Spices Eto Sterilizer

Spices Eto Sterilizer Specification

Classification
ETO STERILIZER

Product Type
STERILIZER

Operate Method
Automatic

Weight
500 Kilograms (kg)

Application
Hospital, PHARMACEUTICAL

Color
Silver

Usage
STERILIZATION

Material
Stainless Steel

Dimension (L*W*H)
5 Foot (ft)

Voltage
220-240 Volt (v)

Capacity
500 Kg

Power
240 Volt (v)

Chamber Size
3X3X4

Chamber Thickness
6 Millimeter (mm)

Outer Size
6X4X6

Compressed Air
2.5

Door Type
SS

Insulation
SS

Net Weight
500 Kilograms (kg)

Outer Trolley
SS

Inner Trolley
SS

Sterilizing Temperature
121 Celsius (oC)

Working Temperature
121 Celsius (oC)

Piping System
SS

Spices Eto Sterilizer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA), Cheque

Supply Ability
30 Units Per Month

Delivery Time
45 Days

Sample Available
No

Packaging Details
STANDARD PACKING, BOX PACKING

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO, IEC, GMP

About Spices Eto Sterilizer

Fully Automatic Ethylene Oxide Sterilizer

Our advanced Ethylene Oxide Sterilizer is designed for precise and efficient sterilization processes. Equipped with cutting-edge technology and automation, this system ensures reliable and consistent results.

Key Features:

1. Pre-Programmed Cycles: Customizable cycles for specific sterilization needs.

2. Control: Advanced control systems for precise management of the sterilization process.

3. Temperature Control: Accurate temperature management for optimal sterilization conditions.

4. Alarm System: Alerts for any deviations or issues during the process.

5. Print Functionality: Generates detailed reports for record-keeping and quality control.

6. HMI (Human-Machine Interface): User-friendly interface for easy operation and monitoring.

7. Security: Enhanced security features to protect settings and data.

Advantages of PLC Automation:

Our Programmable Logic Controller (PLC) enables automation of electro-mechanical processes, providing:

- Precise Control: Over machinery and processes for consistent results.

- Reliability: Ensures smooth operation and minimizes human error.

Technical Specifications:

- Chamber Operating Pressure: 1.5 Kg/cm

- Chamber Testing Pressure: 2 Kg/cm (1.5 times the working pressure)

- Inner Seal (Chamber): SS 304L

- Gasket: Silicon Gasket (10/12 mm solid section)

- Outer Cover: Factory-finished (Poly-coated) MS

- Heating System: Uniform heating throughout the load with heaters on all sides of the chamber.

- Sensors:

- Temperature Sensor: For accurate measuring and controlling of temperature.

- RH% Sensor: For measuring and controlling humidity.

- Pressure Transmitter: For measuring and controlling pressure-vacuum.

- Valves: Pneumatic valves operated by compressed air supply through solenoid valves.

- Humidification System: Special humidifier for load humidification and gas heating.

- Vacuum System: Noise-less vacuum pump for vacuum and aeration.

- Reports: Generated in three formats - Graph Report, Single Page Summary Report, and Detailed Report.

Construction:

- Fabricated with SS 304: Ensures durability and resistance to corrosion.

- Door Closing: Manual operation for secure sealing.

- All Fittings and Valves: SS 304 and construction for reliability and longevity.

Components:

- PLC: Renu, Omron for precise control and automation.

- HMI: Renu, Omron for user-friendly operation.

This sterilizer is designed to meet the highest standards of performance, safety, and reliability, making it suitable for various applications in the medical, pharmaceutical, and industrial sectors.
